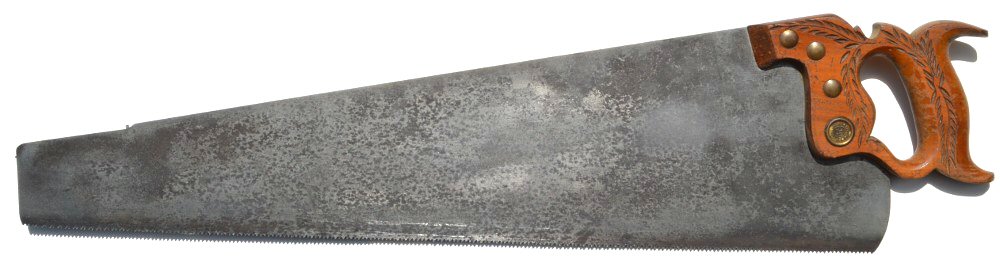

No. 16 Handsaw

Disston No. 16 and D-16 Handsaws

16 etch



The Disston No. 16 saw and its successor, the short-lived D-16, were high-quality saws with a straight back and a close-up style handle. Its quality level was comparable to the D-8. The No. 16 or New 16 was sold from 1880-1928. If there was an "Old" 16 before that, I've never seen it or heard from anybody who owns one. The etch has the phrase "Thin Back" but there is no difference in the thickness of the back or the amount of taper to the blade. Like other full-sized Disston saws, the typical No. 16 saw is about .038" to .040" thick at the teeth and averages .032" at the center of the saw's back. Panel saws are .005" to .008" thinner than full-sized handsaws.

The other features of the No. 16 are a London Spring steel blade, applewood handle with ornate chip carving, and four sawnuts, or three if the saw blade is 20" or under in length. A quick way to identify the No. 16 is seeing that the medallion is the bottom nut, rather than in the middle of the pack.

The handle to the right is from a full-sized No. 16. Below it is the handle from the panel saw. On the bottom is a smaller panel saw with three saw nuts on the handle.

No. 16 handle
No. 16 Panel Saw 16 panel saw handle No 16 panel saw handle
D-16 Etch

The D-16 was introduced in 1928, but was soon discontinued, as it does not appear in the 1932 or later catalogs. The D-16 was close in design to the D-8, the only difference being the straight back. Unlike its predecessor, the D-16 did not feature carving on the handle. The D-16 was available for that short time in either regular width or narrow (lightweight) pattern, according to catalogs.

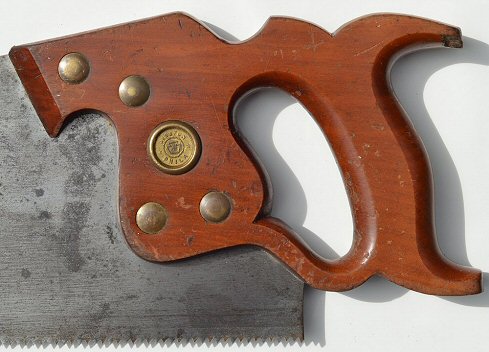

D-16 saw handle

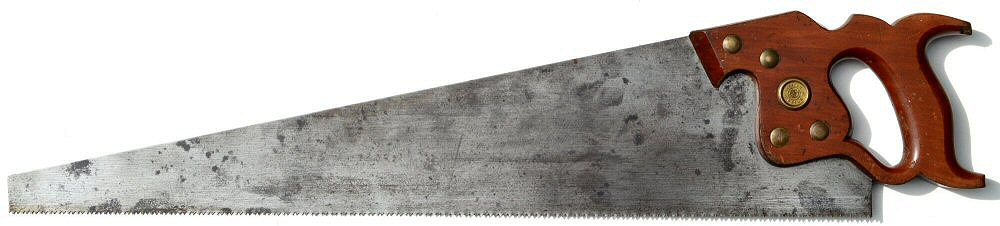

D-16 Lightweight Handsaw



Information taken from Disston 1890 catalog:

If you cannot be supplied through your dealer, write us.

No. 16 1890 catalog illustration
No. 16



New No. 16. Premium Saw, with latest improved Handle, Spring Steel Blade, extra grained. Carved Apple Handle, with 4 brass Centennial Screws. An extra fine saw in every respect.
 Retail
 per Dozen
Length
14" $13.50
16" $14.50
18" $16.00
20" $17.50
22" $19.50
24" $21.00
26" $22.00
28" $25.00
30" $28.00




Information taken from Disston 1906 and 1914 catalogs:

Note: The product line was its broadest at this time. Points per inch are not specified so it may be safe to assume the customer could special order any practical number of points on a saw.



No. 16 Illustration
No. 16

Spring Steel, Grained Blade, Warranted, Apple Handle, Carved and Polished, Brass Screws. This saw has the blade set into handle similar to D-8.
Prices per dozen Retail
 Retail
 per Dozen
Length
14"  $13.75
16"  $14.75
18"  $16.25
20"  $18
22"  $20
24"  $21.50
26"  $22.50
28"  $25.50
30"  $28.50




Information taken from Disston 1918 catalog:

No. 16 Illustration
No. 16

Refined Crucible Steel, Grained Blade, Warranted, Close-up Apple Handle.
Carved and Polished, Brass Screws.

Manufactured only in the following lengths and points:
inches points Retail
Cross Cut
20 9, 10, 11 $18.00 per dozen
22 8, 9, 10, 11 $20.00
24 7, 8, 9, 10, 11 $21.50
26 6, 7, 8, 9, 10 $22.50
Rip
26 5, 5 1/2, 6 $22.50
28 5, 5 1/2, 6 $25.50




Information taken from Disston 1922 catalog:

No. 16  1922 catalog illustration
No. 16 Saw



The Disston No. 16 Handsaw is made to suit those who prefer a straight-back saw, with a point not quite as wide as the D-8. This saw is substantially built and nicely finished. The blade is Disston-made Steel. The handle, of hardwood, is nicely carved and polished and is fastened with brass screws. This saw is equal in quality and workmanship to the D-8 and cost is the same. It is regularly made in lengths from 14 to 30 inches with cross-cut or rip teeth.
Lengths (inches):
14, 16, 18, 20, 22, 24, 26, 28, 30.




Information taken from Disston 1924 and 1926 catalogs:

No. 16  1924 catalog illustration
No. 16 Saw



The Disston No. 16 Handsaw is made to suit those who prefer a straight-back saw, with a point not quite as wide as the D-8. This saw is substantially built and nicely finished. The blade is Disston-made Steel. The handle, of hardwood, is nicely carved and polished and is fastened with brass screws. This saw is equal in quality and workmanship to the D-8 and cost is the same.
Lengths (inches):
Crosscut -- 20, 22, 24, 26.
Rip -- 26, 28. (26" only, 1926)




Information taken from Disston 1927 catalog:



Choosing a saw for general use is largely a matter of personal preference. The following Disston Saws are all popular. One of the wide-blade patterns or the Lightweight patterns will have the temper, weight, and balance that just suits you.

More and more each year sawing is in lighter work. Carpenters and saw users do not have as much heavy sawing to do. Modern building methods have taken a great deal of it away. Therefore, Disston Lightweight Saws, having less weight and less width to the blade, are very popular. They are easier to handle on many of today's sawing jobs.



No. 16  1927 catalog illustration
No. 16 Saw



This saw is a favorite with saw users who like the hang and balance of the wide-blade D-8 but prefer a straight-back saw. It is substantially built and nicely finished.

The blade is Disston-made steel, taper ground. The handle, of apple-wood, is nicely carved and polished and is fastened with brass screws. This saw is equal in quality and workmanship to the D-8 and the cost is the same. Made in lengths from 20 inches to 26 inches cross-cut teeth and 26 inches rip teeth.




No. 16 lightweight 1927 catalog illustration
No. 16 Lightweight (Ship) Pattern



This is another straight-back Disston Lightweight (Ship) Pattern Saw that is becoming very popular. Having less weight and less width to the blade than the wide-blade saws it is preferred by many saw users who do not have much heavy sawing. It is made of the same material as the wide-blade No. 16. Made in lengths of 26 inches cross-cut teeth and 26 inches rip teeth.




Information taken from Disston 1928 brochure:

D-16 1928 catalog illustration
D-16 Regular Pattern Straight Back

Blade made narrower. Improved pattern of applewood handle, new weatherproof finish.
Brass screws. Higher polish, greater beauty. Disston true-taper grind.
Price, 26" length, $3.45 each


  length points
cross-cut 20" 10
22" 10
24" 9
26" 7, 8, 9, 10, 11
rip 26" 5 1/2, 6


D-16 lightweight 1928 catalog illustration
D-16 Lightweight Pattern Straight Back

Improved pattern of applewood handle, new weatherproof finish.
Brass screws. Higher polish, more beautiful. Disston true-taper grind.
Price, 26" length, $3.45 each


  length points
cross-cut 26" 7, 8, 9, 10, 11
rip 26" 5 1/2



Information taken from Disston 1929 catalog:

D-16 1929 catalog illustration
D-16

Lightweight Pattern, Straight-back Improved pattern of applewood handle,
new weatherproof finish, brass screws. Disston true-taper grind.


length points retail (each)
Crosscut 26" 7, 8, 9, 10, 11 $3.45
Rip 26" 5 1/2 $3.45





Disston Regular Pattern Saws
(Standard Width)

To those who prefer Regular Pattern (Standard Width) saws, we can supply the old-time favorites, improved in every feature, including Disston True-Taper grinding, thinner blades, weatherproof-finish handles with covered tops, larger hand holes, etc. Disston Regular Pattern saws are made in all required lengths and points. The numbers of these old-time favorites are D-115, D-8, D-120, and D-17 in skew-back patterns, and D-12, D-16, and D-7 in straight-back.




The D-16 does not appear in the 1932 catalog.
